SPECIFICATIONS

Brand Name: ZHENAO

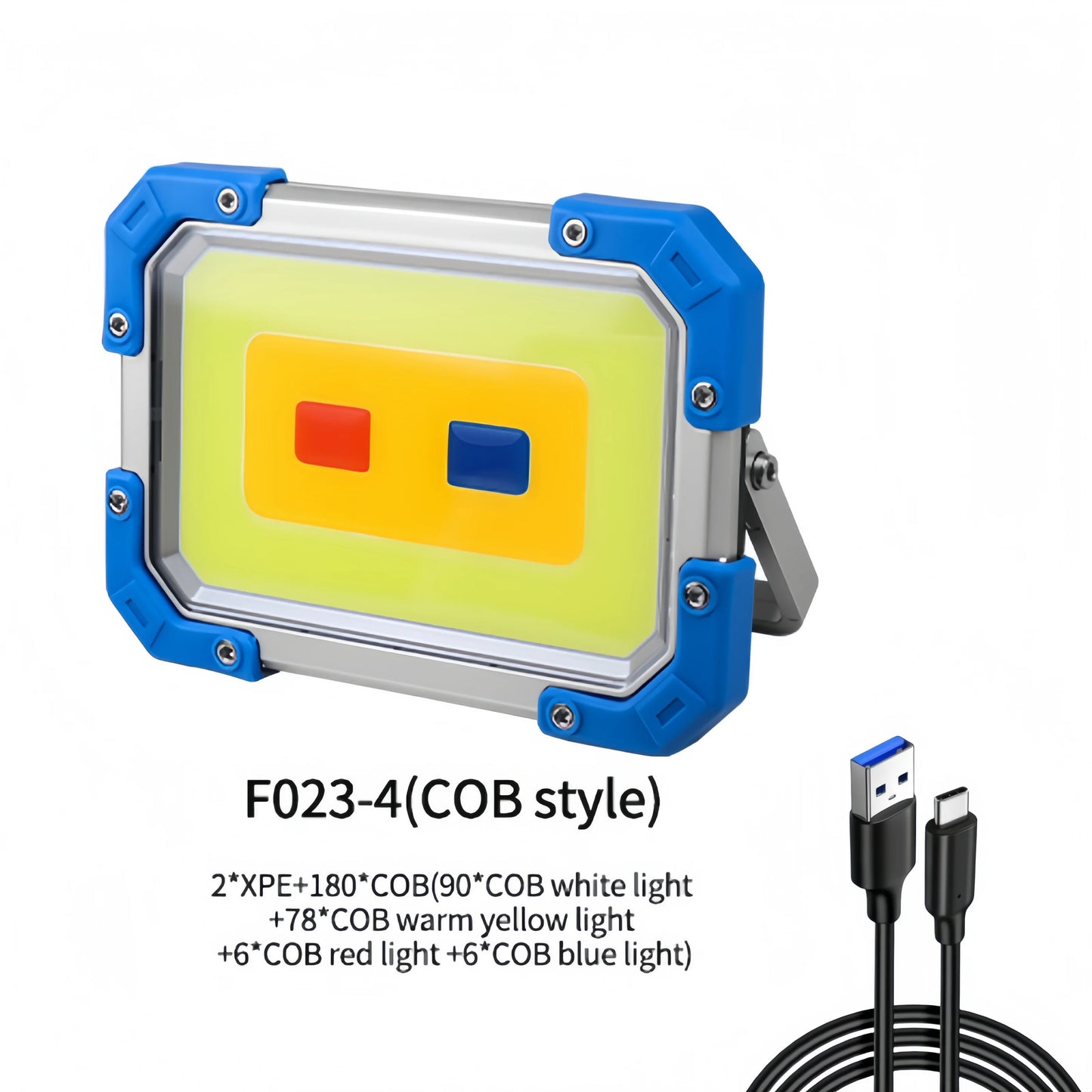

Model: F023-1(73*LED style) F023-3(35*LED style) F023-4(COB style)
Weight: F023-1:298G F023-3:282G F023-4:287G
Size: 14*10*3.3CM
Switch: Press the switch
Material: ABS
Battery: Built-in 3*1200mAh18650 battery(3600mA)
Waterproof grade: lPX4
Charging method: Type-c USB charging Support output
Light bulb: F023-1: 2*XPE+73*LED(34*LED white light +33*LED warm yellow light +3*LED red light +3*LED blue light) F023-3: 2*XPE+35*LED(18*LED white light +17*LED warm yellow light) F023-3: 2*XPE+180*COB(90*COB white light +78*COB warm yellow light +6*COB red light +6*COB blue light)
Gear mode:
F203-1
7th gear: 2*XPE strong light -2*XPE weak light -2*XPE flash-90*COB white light -78*COB yellow light -0*COB white light +78*COB yellow light at the same time -6*COB redlight +6*COB blue light flashes alternately
F203-3
6th gear: 2*XPE strong light -2*XPE weak light -2*XPE flash-18*LED white light -17*LED yellow light -18*LED white light +17*LED yellow light is on at the same time
F203-47th gear: 2*XPE strong light -2*XPE weak light -2*XPE flash-90*COB white light -78*COB yellow light -90*COB white light +78*COB yellow light is on at the same time -6*COB red light +6*COB blue light flashes alternately.
When the switch is pressed for a long time in XPE gear, it will switch to LED or COB white light. When the other gears except XPE gear are long, the dimming can be stepless. Stay in any gear for8 seconds and press it again to turn it off.

The ZHENAO F023 series delivers professional-grade illumination for demanding outdoor applications. Available in three configurations—73-LED, 35-LED, and 180-COB styles—each model combines dual XPE spotlights with versatile color options including white, warm yellow, red, and blue LEDs for task-specific lighting needs. Built with durable ABS construction and IPX4 waterproof rating, these lights withstand harsh conditions. The integrated 3×1200mAh 18650 battery (3600mAh total) provides extended runtime, while Type-C USB charging with power output capability ensures convenient recharging and emergency power sharing. Compact at 14×10×3.3cm and weighing under 300g, the F023 series excels as a camping light, work lamp, and emergency flashlight. Simple press-switch operation makes it intuitive for any user.
